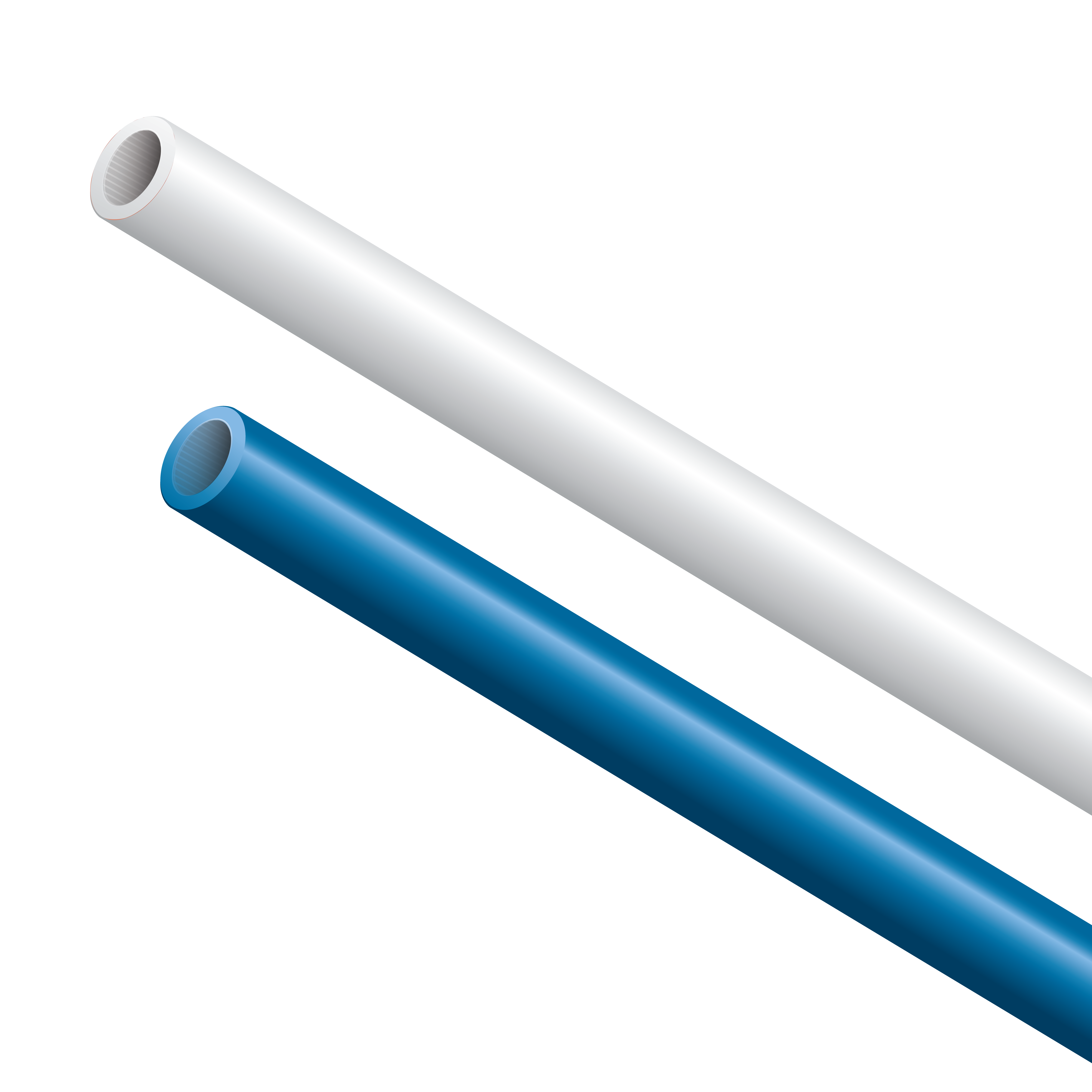

MicroDucts LSHF (DuraMicro LSHF)

MicroDucts LSHF (Low Smoke Halogen Free) are specifically designed for in-building applications where fire, smoke, and toxic fumes may pose a risk to human life and critical electronic equipment. Tested to stringent European standards, MicroDucts LSHF offer best-in-class fire performance when tested to EN 13501-1. Once installed, they enable seamless, cost-effective moves, adds, and changes (MACs) and end-to-end fibre jetting in indoor FTTH, LAN, data centre, and transportation networks.
MicroDucts LSHF (Low Smoke Halogen Free) are specifically designed for in-building applications where fire, smoke, and toxic fumes may pose a risk to human life and critical electronic equipment. Tested to stringent European standards, MicroDucts LSHF offer best-in-class fire performance when tested to EN 13501-1. Once installed, they enable seamless, cost-effective moves, adds, and changes (MACs) and end-to-end fibre jetting in indoor FTTH, LAN, data centre, and transportation networks.
Configure

Features

  • Made from quality flame retardant materials, formulated for long life expectancy
  • Tested in accordance with EN 13501-1 for reaction to fire and achieved best-in-class fire performance and smoke generation rating 'B s1 d0' when mounted on gypsum plasterboard
  • Halogen free, tested in accordance with EN 50642
  • MicroDucts LSHF are tested by respected German test institute VDE and marked in accordance with EN IEC 61386-22 (VDE 0605-22):2021-12; EN IEC 61386-22:2021+A11:2021. Production is regularly audited by VDE.
  • Available with SILICORE®, a permanently lubricated, coextruded inner lining that provides a lower inner coefficient of friction (<0.1) for maximum cable blowing length
  • Available in natural, milky white color
  • Designed for a fill ratio between a minimum of 50% and a maximum of 75%

Details

  • Footage/Meter Markings
MicroDucts LSHF (Low Smoke Halogen Free) are specifically designed for in-building applications where fire, smoke, and toxic fumes may pose a risk to human life and critical electronic equipment. Tested to stringent European standards, MicroDucts LSHF offer best-in-class fire performance when tested to EN 13501-1. Once installed, they enable seamless, cost-effective moves, adds, and changes (MACs) and end-to-end fibre jetting in indoor FTTH, LAN, data centre, and transportation networks.

Quick Links

Tech Center

Specifications

Choose the MicroDuct size (OD/ID) to view the specifications
MicroDuct Size mm

Send

From

To

Downloads

Reference Guides
ENG_LSHF_Leaflet_6.24_digital

Colors

LSHF Milky White
LSHF Milky White

Options

Internal Ribs
Smooth Interior Wall
Pre-installed Rope

Installations

Applications
